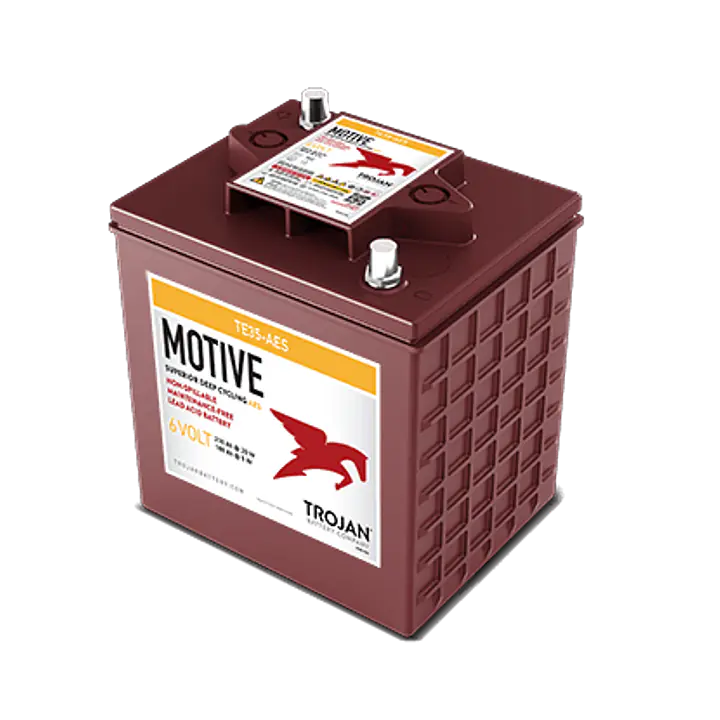

Trojan TE35-AES 6V AES AGM Battery – DIN Size, Deep-Cycle, Long-Life
The Trojan TE35-AES 6V AGM Battery is a high-performance deep-cycle battery engineered for European markets, featuring DIN (German Industrial Standard) sizing. Powered by Advanced AES AGM technology, this battery delivers exceptional durability, high-capacity performance, and up to 3× the cycle life of standard AGM batteries.
Ideal for renewable energy storage, electric vehicles, floor machines, marine applications, and backup power systems, the TE35-AES maintains reliable performance under extreme deep-cycling, partial state of charge (PSoC), and harsh temperature conditions.
Key Specifications & Performance
Voltage: 6V
Capacity:
180Ah @ 5-Hour Rate
192Ah @ 10-Hour Rate
210Ah @ 20-Hour Rate
215Ah @ 100-Hour Rate
Discharge Minutes: 450 min @ 25A
Energy Output: 1.29 kWh
Cycle Life: 1,200 cycles at 100% DoD (BCI-06 tested)
Rugged Design for Extreme Conditions
The TE35-AES AGM battery is built to withstand vibration, shock, and extreme temperatures ranging from -40°F to 140°F (-40°C to 60°C). Its robust design ensures long-lasting, reliable power in demanding environments.
Maintenance-Free & Safe Installation
Maintenance-free AGM design – no watering required
Non-spillable VRLA battery
Minimal upkeep for commercial, industrial, and marine applications
Supports fast, high-throughput charging
Environmentally Responsible
Trojan TE35-AES batteries are manufactured using 80% recycled materials and are 99% recyclable, making them a sustainable choice for green energy systems.
Physical Specifications
Dimensions: 9.61" L × 7.48" W × 10.77" H (244 × 190 × 273 mm)
Weight: 74.3 lbs (33.7 kg)
Warranty
Backed by a 3-year limited manufacturer warranty, providing confidence in long-term investment and performance.
