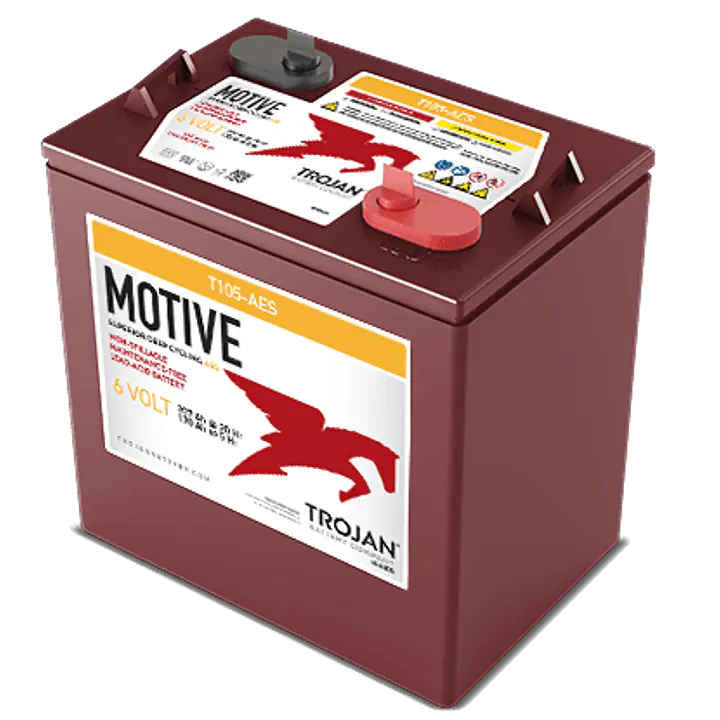

Trojan T105-AES 6V AES AGM Deep-Cycle Battery (185Ah)

The Trojan T105-AES 6V AGM Battery is a premium deep-cycle battery engineered for floor scrubbers, electric vehicles (EVs), marine applications, and boating systems. Utilizing Advanced AGM (AES) technology, this battery provides high-capacity, sustained power with exceptional durability, delivering up to 3× the cycle life of standard AGM batteries.

With proven performance under extreme deep cycling (up to 100% Depth of Discharge), harsh temperatures, and partial state of charge (PSoC) conditions, the T105-AES is ideal for industrial, commercial, and recreational power applications.

Key Performance Specifications

• Voltage: 6V

• Capacity:

  • 170Ah @ 5-Hour Rate

  • 185Ah @ 10-Hour Rate

  • 207Ah @ 20-Hour Rate

  • 225Ah @ 100-Hour Rate

• Discharge Minutes: 420 min @ 25A, 113 min @ 75A

• Energy Output: 1.35 kWh

• Cycle Life: 1,200 cycles at 100% DoD (validated)

Rugged Design for Extreme Conditions

The T105-AES AGM battery is built to perform in demanding environments, with an operating temperature range of -40°F to 140°F (-40°C to 60°C). Its vibration- and shock-resistant construction ensures reliable operation in mobile, marine, and industrial applications.

Maintenance-Free & Safe Installation

• Maintenance-free VRLA AGM design – no watering required

• Non-spillable battery, safe for horizontal or confined mounting

• Compatible with existing AGM chargers and charging profiles

Environmentally Responsible

Manufactured using 80% recycled materials and 99% recyclable, the T105-AES supports sustainable energy storage solutions.

Physical Specifications

• Dimensions: 10.30" L × 7.06" W × 10.73" H (262 × 179 × 273 mm)

• Weight: 68 lbs (32 kg)

Warranty

Backed by a 3-year manufacturer warranty, providing confidence for long-term investment in industrial, EV, and marine power systems.
