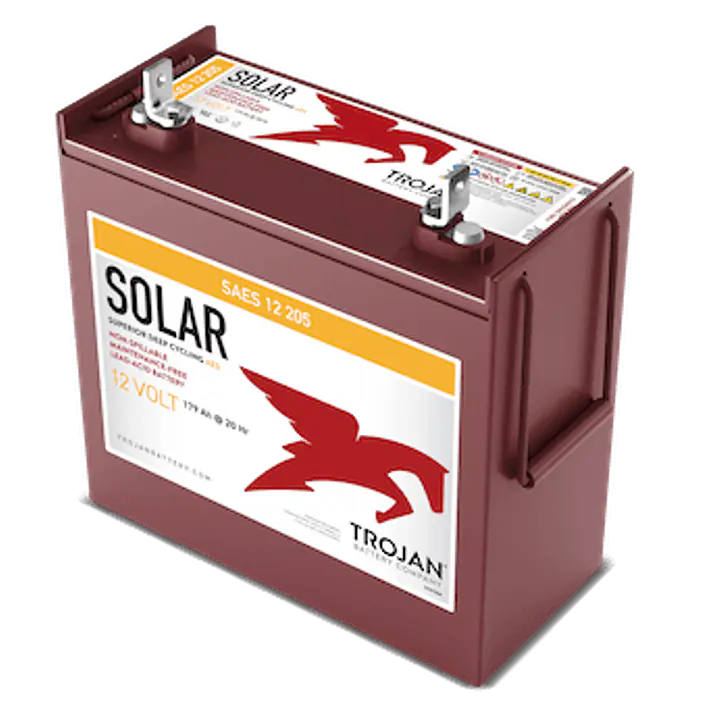

The Solar SAES 12 205 12V AES AGM Battery is a premium deep-cycle AGM battery designed for solar energy systems, off-grid applications, and renewable energy storage. Utilizing Trojan AES advanced AGM technology, this battery delivers up to 3x the cycle life of standard AGM batteries, making it ideal for residential, commercial, and industrial solar installations that require reliable, long-lasting power.

Built to handle extreme deep-cycling (up to 100% depth of discharge), the Solar SAES 12 205 maintains high energy output even under partial state of charge (PSoC) conditions. Its maintenance-free, non-spillable VRLA design allows for safe horizontal mounting, making it perfect for tight or challenging installation spaces.

Key Features & Benefits:

• Extended Cycle Life: Up to 1,200 cycles at 100% DoD, providing 3x longer lifespan than standard AGM batteries

• High Energy Output: Provides 2.10 kWh of reliable deep-cycle power

• Versatile Amp-Hour Capacity:

  • 10-Hr Rate: 159 Ah

  • 20-Hr Rate: 175 Ah

  • 48-Hr Rate: 210 Ah

  • 72-Hr Rate: 213 Ah

  • 100-Hr Rate: 216 Ah

• Deep-Cycle Performance: Built for continuous discharge and recharge in solar and renewable energy systems

• Extreme Temperature Operation: Performs reliably from -40°F to 140°F (-40°C to 60°C)

• PSoC Tolerant: Designed for repeated partial charge cycles without reducing battery life

• Maintenance-Free Design: No watering or routine maintenance required

• Safe & Sustainable: Non-spillable, made with 80% recycled materials, and 99% recyclable

• Rugged Construction: Built to resist vibration and shock

• Charging Compatibility: Works with existing AGM chargers and profiles

• Warranty Protection: Backed by a 3-year manufacturer warranty

Technical Specifications:

• Dimensions: 14.97” L × 6.94” W × 14.07” H (380 × 176 × 357 mm)

• Weight: 131 lbs (59 kg)
