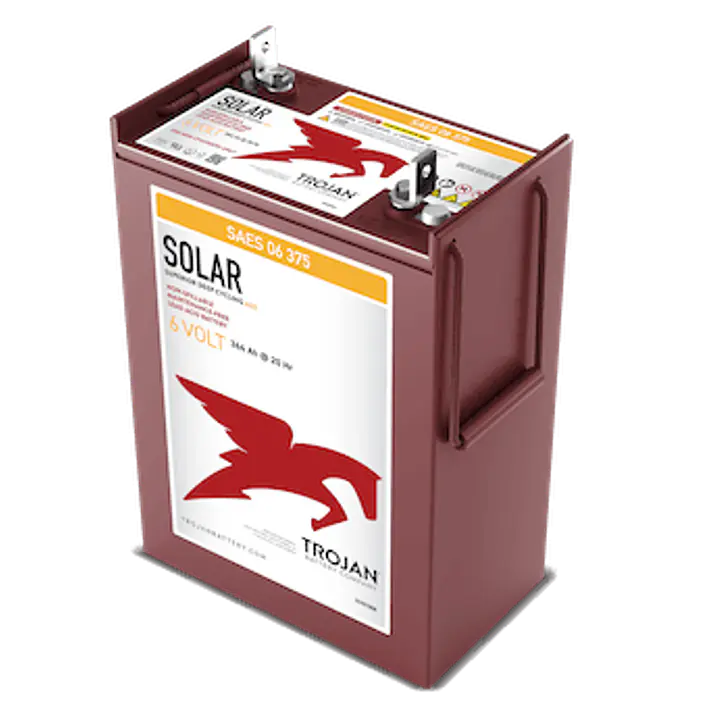

Solar SAES 06 375 – 6V AES AGM Deep Cycle Battery (364Ah)

The Trojan Solar SAES 06 375 6V AES AGM Battery is a high-capacity deep-cycle solar battery engineered for renewable energy storage, off-grid solar systems, hybrid power solutions, and backup power applications. Built with Advanced AGM (AES) technology, this battery delivers up to 3× longer cycle life than standard AGM batteries while maintaining high, consistent performance in demanding environments.

Designed to withstand extreme deep cycling up to 100% Depth of Discharge (DoD), the Trojan Solar AES battery performs reliably in partial state of charge (PSoC) conditions and across a wide range of temperatures. It is an ideal solution for solar battery banks, microgrids, telecom systems, industrial energy storage, RV, and remote power installations.

Performance & Electrical Specifications

• Voltage: 6V

• Capacity:

  • 327Ah @ 10-Hour Rate

  • 364Ah @ 20-Hour Rate

  • 389Ah @ 48-Hour Rate

  • 394Ah @ 72-Hour Rate

  • 400Ah @ 100-Hour Rate

• Energy Output: 2.02 kWh

• Cycle Life: 1,200 cycles at 100% DoD (validated)

Built for Extreme Conditions

The SAES 06 375 AGM battery is engineered to perform in harsh climates, with an operating temperature range of -40°F to 140°F (-40°C to 60°C). Its rugged, vibration- and shock-resistant construction ensures long service life in stationary and mobile power applications.

Maintenance-Free & Safe Installation

• Maintenance-free VRLA AGM design – no watering required

• Non-spillable battery, safe for indoor use

• Can be mounted horizontally, ideal for confined or difficult locations

• Fully compatible with existing AGM chargers and charging profiles

Sustainable & Environmentally Responsible

Manufactured using 80% recycled materials and 99% recyclable, Trojan Solar AES AGM batteries support environmentally responsible energy storage without compromising performance.

Physical Specifications

• Dimensions: 11.66" L × 6.94" W × 16.31" H (296 × 176 × 414 mm)

• Weight: 114 lbs (52 kg)

Warranty

Backed by a 3-year manufacturer warranty, ensuring confidence in long-term performance and reliability.

Ideal Applications

• Solar power and off-grid energy storage systems

• Hybrid renewable energy solutions

• Backup and emergency power systems

• Telecom, industrial, and utility applications

• RV, marine, and remote power systems
