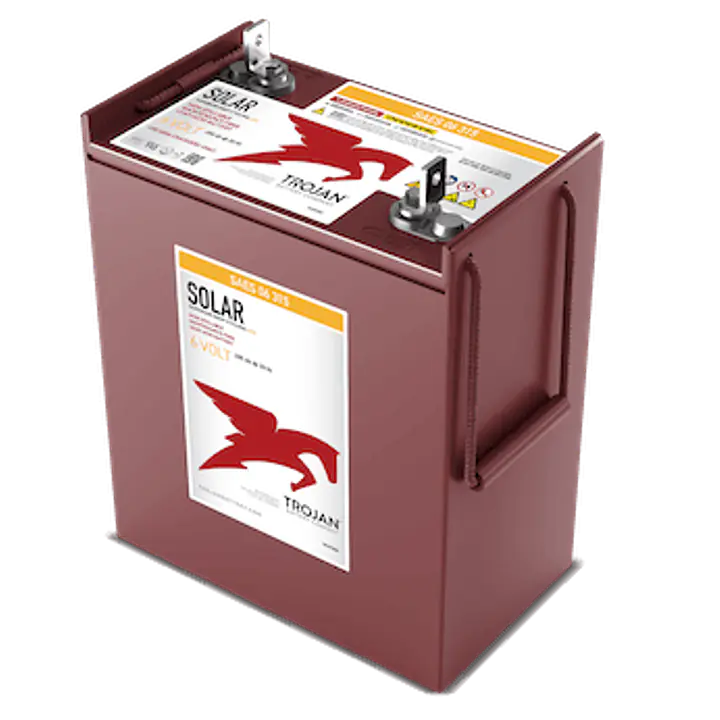

Trojan Solar SAES 06 315 – 6V AES AGM Deep-Cycle Battery (285Ah)

The Trojan Solar SAES 06 315 6V AES AGM Battery is a high-performance deep-cycle battery designed for off-grid solar systems, hybrid renewable energy, and backup power applications. Built with Advanced AES AGM technology, this battery delivers up to 3× the cycle life of standard AGM batteries, ensuring long-term, reliable energy storage.

Perfect for solar energy storage, microgrids, telecom, RVs, and industrial applications, the SAES 06 315 maintains high capacity even under extreme deep cycling (up to 100% Depth of Discharge), harsh temperatures, and partial state of charge (PSoC) conditions.

Key Performance Specifications

• Voltage: 6V

• Capacity:

  • 255Ah @ 10-Hour Rate

  • 285Ah @ 20-Hour Rate

  • 306Ah @ 48-Hour Rate

  • 317Ah @ 72-Hour Rate

  • 327Ah @ 100-Hour Rate

• Energy Output: 1.71 kWh

• Cycle Life: 1,200 cycles at 100% DoD (validated)

Designed for Extreme Conditions

The SAES 06 315 AGM battery delivers robust performance in extreme environments, with an operating temperature range of -40°F to 140°F (-40°C to 60°C). Its shock- and vibration-resistant design ensures durability in stationary, mobile, and industrial power applications.

Maintenance-Free & Safe Installation

• Maintenance-free VRLA AGM design – no watering required

• Non-spillable battery, safe for horizontal or constrained mounting

• Compatible with existing AGM chargers and charging profiles

Sustainable & Environmentally Responsible

Trojan AES AGM batteries are manufactured using 80% recycled materials and are 99% recyclable, making them a green choice for renewable energy systems.

Physical Specifications

• Dimensions: 11.66" L × 6.94" W × 13.99" H (296 × 176 × 355 mm)

• Weight: 101 lbs (45 kg)

Warranty

Backed by a 3-year manufacturer warranty, providing confidence for long-term solar and backup power investments.
