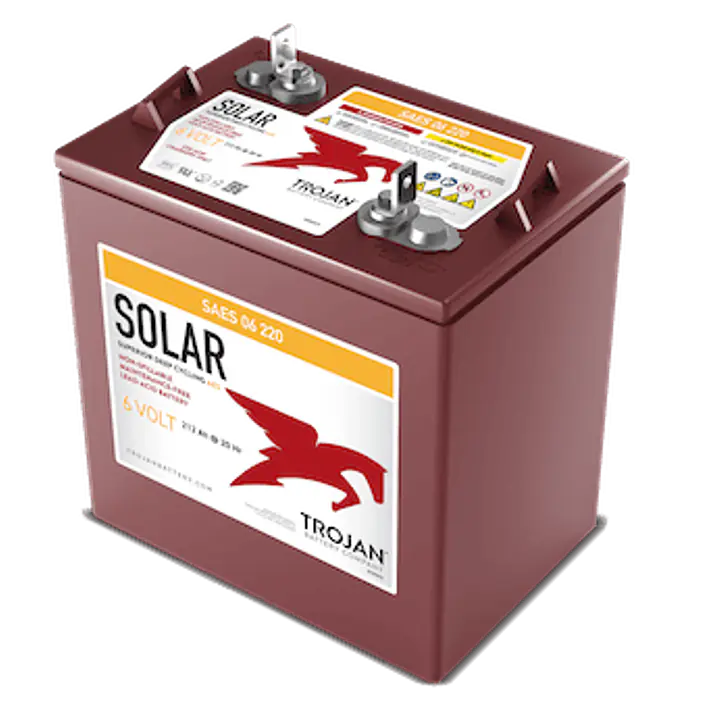

Solar SAES 06 220 – 6V AES AGM Deep Cycle Battery (209Ah)

The Trojan Solar SAES 06 220 6V AES AGM Battery is a premium deep-cycle solar battery engineered for renewable energy systems, off-grid power, hybrid solar installations, and backup power applications. Designed with Advanced AGM (Absorbent Glass Mat) technology, this battery delivers exceptional durability, high sustained performance, and up to 3× longer cycle life than standard AGM batteries.

Built to withstand extreme deep cycling up to 100% Depth of Discharge (DoD), the Trojan Solar AES battery maintains high capacity even in partial state of charge (PSoC) conditions and harsh environments. It is ideal for solar power storage, battery banks, RV systems, telecom, microgrids, and industrial energy storage.

Key Performance Specifications

• Voltage: 6V

• Capacity:

  • 190Ah @ 10-Hour Rate

  • 209Ah @ 20-Hour Rate

  • 227Ah @ 48-Hour Rate

  • 231Ah @ 72-Hour Rate

  • 235Ah @ 100-Hour Rate

• Energy Output: 1.25 kWh

• Cycle Life: 1,200 cycles at 100% DoD (validated)

Rugged Design for Extreme Conditions

The Trojan Solar SAES 06 220 AGM battery is engineered for reliable operation in demanding climates, with an operating temperature range of -40°F to 140°F (-40°C to 60°C). Its vibration- and shock-resistant construction ensures dependable performance in mobile, industrial, and remote installations.

Maintenance-Free & Safe Installation

• Maintenance-free AGM design – no watering required

• Non-spillable VRLA battery, safe for indoor use

• Can be mounted horizontally for tight or unconventional spaces

• Compatible with standard AGM chargers and charging profiles

Environmentally Responsible Energy Storage

Trojan AES AGM batteries are manufactured using 80% recycled materials and are 99% recyclable, making them a sustainable choice for environmentally conscious energy systems.

Physical Specifications

• Dimensions: 10.30" L × 7.06" W × 10.73" H (262 × 179 × 273 mm)

• Weight: 68 lbs (31 kg)

Warranty

Backed by a 3-year manufacturer warranty, providing peace of mind for long-term solar and backup power investments.

Ideal Applications

• Solar power systems & off-grid energy storage

• Hybrid renewable energy systems

• Backup power and emergency power supplies

• Telecom, industrial, and utility energy storage

• RV, marine, and remote power installations
