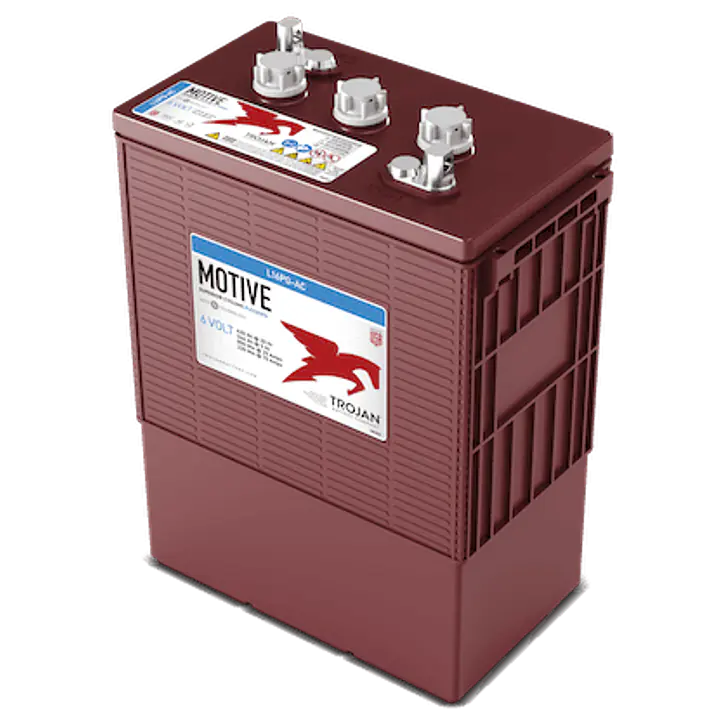

The L16PG-AC 6V Flooded Lead Acid Battery is a high-capacity, deep-cycle battery designed to deliver reliable, long-lasting power for demanding renewable energy, industrial, backup power, and off-grid applications. Built with Maxguard® Advanced Design Separator and Alpha Plus® paste formulation, this battery provides industry-leading performance, extended service life, and lower overall maintenance costs.
With an impressive 420 Ah at the 20-hour rate and 2.80 kWh of energy, the L16PG-AC is engineered for sustained discharge cycles and heavy-duty use. Its rugged construction, heat- and corrosion-resistant materials, and ergonomic carrying handles make it ideal for harsh operating environments. Optional HydroLink™ Single-Point Watering System simplifies maintenance, while low self-discharge ensures dependable energy availability during storage.
Key Features & Benefits:
High-Capacity Deep-Cycle Performance:
344 Ah (5-Hr) | 386 Ah (10-Hr) | 420 Ah (20-Hr) | 467 Ah (100-Hr)
Extended Runtime:
850 minutes @ 25 amps
220 minutes @ 75 amps
Energy Output: 2.80 kWh
Long Service Life: Maxguard® separator and Alpha Plus® paste maximize sustained performance
Durable Construction: Heat- and corrosion-resistant design for harsh environments
Flexible Case Options:
Polyon™ case for heavy-duty industrial use
Generic case for standard applications
Maintenance Friendly: Optional HydroLink™ Single-Point Watering System
Low Self-Discharge: Only 5–15% per month
Sustainable Design: 99% recyclable
Technical Specifications:
Dimensions: 12.14” L × 6.85” W × 16.41” H (308 × 174 × 417 mm)
Weight: 111 lbs (50 kg)
Operating Temperature: -4°F to 113°F (-20°C to +45°C)
