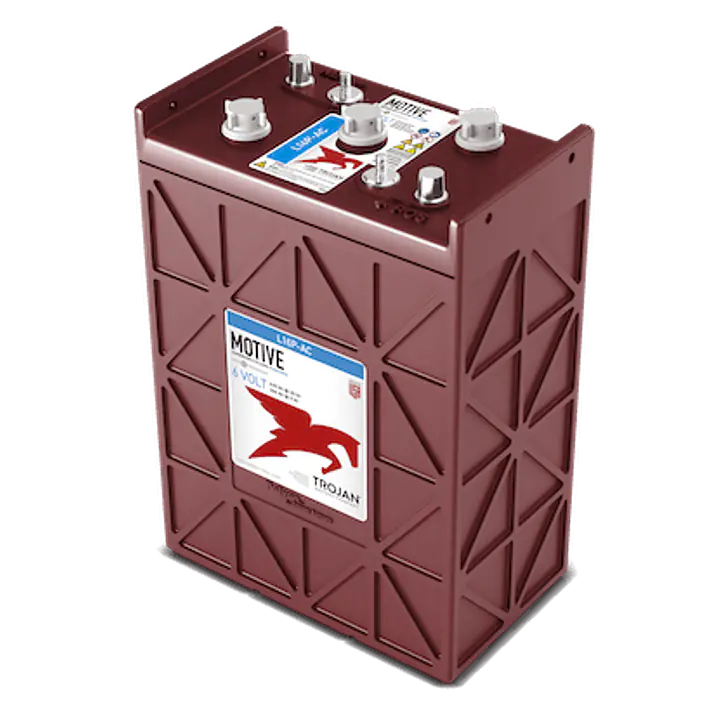

L16P-AC 6V Flooded Lead Acid Battery – High-Capacity Deep-Cycle Power
The L16P-AC 6V Flooded Lead Acid Battery is a high-capacity deep-cycle battery engineered for industrial, renewable energy, and off-grid power applications that demand long runtimes, durability, and consistent performance. Built with Maxguard® Advanced Design Separator and Alpha Plus® paste formulation, this battery delivers exceptional cycle life, sustained energy output, and reduced maintenance costs.
Designed to perform reliably in harsh operating environments, the L16P-AC features a heat- and corrosion-resistant construction and offers two rugged case options to match standard or heavy-service installations. Its low self-discharge rate ensures dependable power availability, while the optional HydroLink™ Single-Point Watering System simplifies routine maintenance.
Ideal for solar energy storage, industrial equipment, backup power systems, and motive power applications, the L16P-AC provides high amp-hour capacity and long-lasting deep-cycle performance.
Key Features & Benefits
Extended Runtime Performance
850 minutes @ 25 amps
220 minutes @ 75 amps
High Amp-Hour Capacity
5-Hr Rate: 344 Ah
10-Hr Rate: 386 Ah
20-Hr Rate: 420 Ah
100-Hr Rate: 467 Ah
Energy Output: 2.80 kWh
Advanced Battery Design: Maxguard® separator and Alpha Plus® paste for longer life and higher efficiency
Rugged Construction: Heat- and corrosion-resistant materials with built-in carrying handles
Flexible Case Options: Polyon™ case for heavy-duty use or generic case for standard applications
Low Self-Discharge: Only 5–15% per month
Maintenance Friendly: Optional HydroLink™ Single-Point Watering System
Sustainable Choice: 99% recyclable
Operating Temperature: Reliable performance from -4°F to 113°F (-20°C to +45°C)
Technical Specifications
Dimensions: 11.66” L × 6.94” W × 16.74” H (296 × 176 × 425 mm)
Weight: 114 lbs (52 kg)
