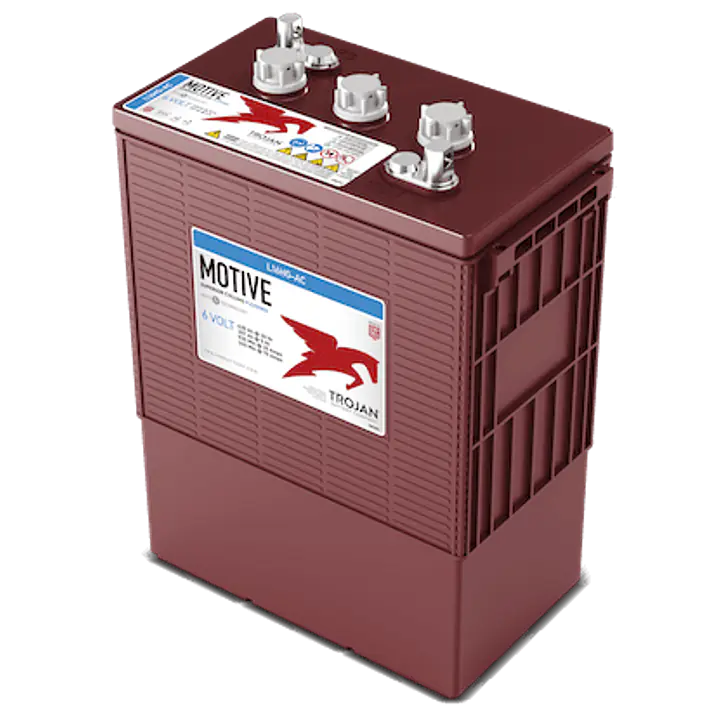

The L16HG-AC 6V Flooded Lead Acid Battery is a high-capacity deep-cycle battery engineered for demanding industrial, commercial, and renewable energy applications. Built with Maxguard® Advanced Design Separator and Alpha Plus® paste formulation, this battery delivers exceptional sustained performance, extended cycle life, and lower total maintenance costs. It is ideal for solar energy storage, backup power systems, material handling equipment, floor care machines, and off-grid power solutions.

Designed for durability in harsh environments, the L16HG-AC features heat- and corrosion-resistant construction, ergonomic carrying handles, and optional HydroLink™ single-point watering system for faster, safer maintenance. With very high amp-hour capacity and long runtime, this battery provides reliable power output even under continuous deep-cycle use. Multiple case options allow flexibility for both heavy-service and standard installations.

Key Features & Benefits:

• Extended Runtime:

  • 935 minutes @ 25 amps

  • 245 minutes @ 75 amps

• High Amp-Hour Capacity:

  • 5-Hr Rate: 357 Ah

  • 10-Hr Rate: 400 Ah

  • 20-Hr Rate: 435 Ah

  • 100-Hr Rate: 483 Ah

• Energy Output: 2.89 kWh

• Long Service Life: Maxguard® separator and Alpha Plus® paste deliver consistent deep-cycle performance

• Durable Construction: Heat- and corrosion-resistant materials for harsh operating environments

• Maintenance Friendly: Optional HydroLink™ single-point watering system

• Low Self-Discharge: Only 5–15% per month

• Battery Case Options:

  • Polyon™ case for heavy-duty service

  • Generic case for standard applications

• Environmentally Responsible: 99% recyclable

• Operating Temperature Range: -4°F to 113°F (-20°C to +45°C)

Technical Specifications:

• Dimensions: 12.25” L × 6.85” W × 16.41” H (311 × 174 × 417 mm)

• Weight: 119 lbs (54 kg)

• Voltage: 6V
