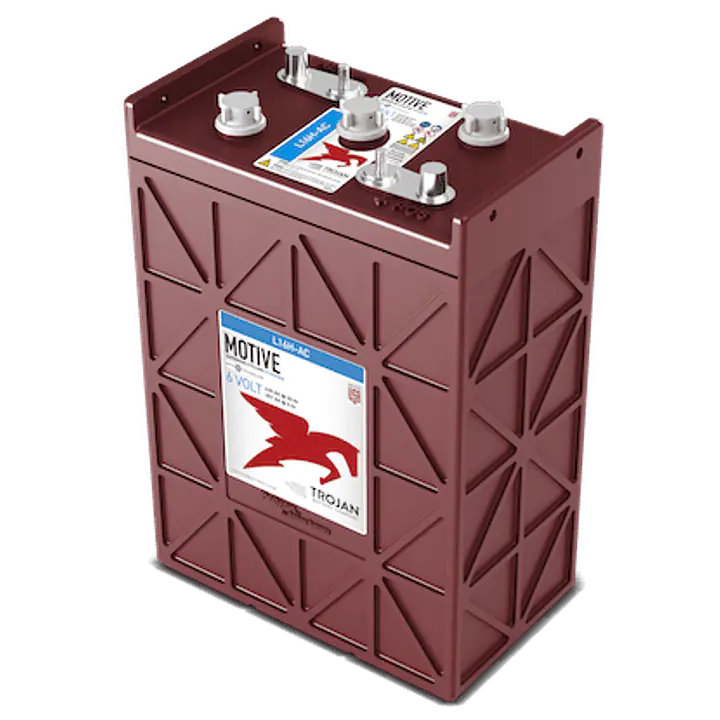

The L16H-AC 6V Flooded Lead Acid Battery is a premium deep-cycle battery engineered for industrial, commercial, and renewable energy applications that demand maximum capacity, long life, and reliable performance. Featuring Maxguard® Advanced Design Separator and Alpha Plus® paste formulation, this battery delivers industry-leading energy output, extended service life, and superior deep-cycle performance. Ideal for golf carts, floor machines, solar systems, and heavy-duty equipment, the L16H-AC ensures consistent power even under demanding conditions.

Constructed with a durable, heat- and corrosion-resistant case and ergonomic handles for easy transport, it withstands harsh environments while maintaining low self-discharge for long-term readiness. Optional HydroLink™ single-point watering system simplifies maintenance, and two battery case options provide flexibility for standard or heavy-duty use.

Key Features & Benefits:

• Extended Runtime:

  • 935 minutes @ 25 amps

  • 245 minutes @ 75 amps

• High Amp-Hour Capacity:

  • 5-Hr Rate: 357 Ah

  • 10-Hr Rate: 400 Ah

  • 20-Hr Rate: 435 Ah

  • 100-Hr Rate: 483 Ah

• Energy Output: 2.89 kWh

• Durable Construction: Polyon™ or generic case options, heat- and corrosion-resistant

• Maintenance-Friendly: Optional HydroLink™ single-point watering system

• Low Self-Discharge: Only 5–15% per month

• Sustainable Design: 99% recyclable

• Operating Temperature: Performs reliably from -4°F to 122°F (-20°C to +50°C)

Technical Specifications:

• Dimensions: 11.66” L × 6.94” W × 16.74” H (296 × 176 × 425 mm)

• Weight: 121 lbs (55 kg)
