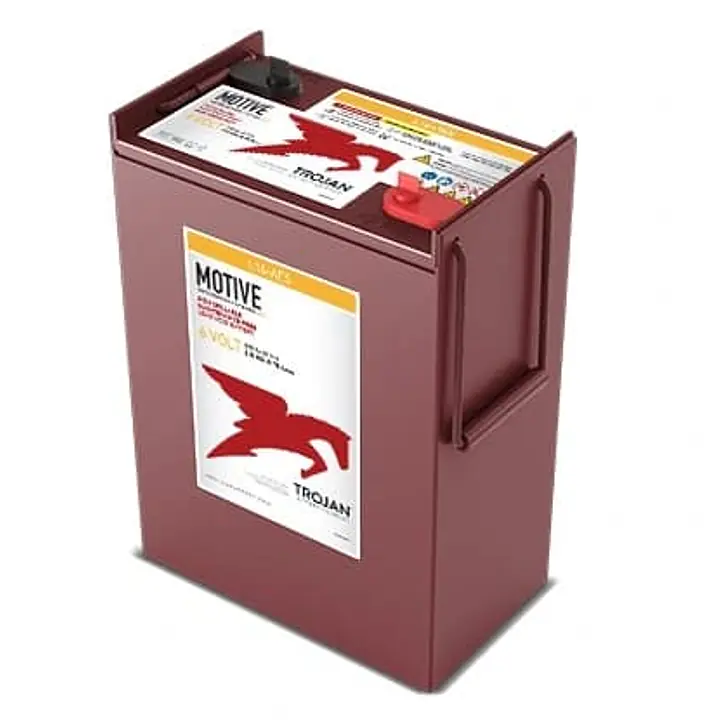

L16-AES 6V AGM Battery – High-Capacity Deep-Cycle Power for Demanding Applications

The L16-AES 6V AGM Battery from Trojan is a premium deep-cycle battery engineered to deliver exceptional sustained performance, long service life, and maintenance-free reliability. Built to BCI Group Size 903, this advanced Trojan AES AGM battery is ideal for renewable energy systems, industrial equipment, marine, RVs, and other high-demand applications requiring dependable power in extreme conditions.

Exceptional Cycle Life & Sustained Performance

Trojan AES AGM technology delivers up to 3x longer cycle life than standard AGM batteries, validated at 1,200 cycles at 100% depth of discharge (DoD). The L16-AES maintains high capacity even during extreme deep cycling, partial state of charge (PSoC), and challenging temperature environments, ensuring consistent power and productivity.

• Runtime:

  • 735 minutes @ 25 amps

  • 206 minutes @ 75 amps

• Capacity:

  • 5-hour rate: 294 Ah

  • 10-hour rate: 320 Ah

  • 20-hour rate: 355 Ah

  • 100-hour rate: 406 Ah

• Energy output: 2.43 kWh

Rugged, Maintenance-Free Design

The L16-AES is virtually maintenance-free, eliminating watering and reducing service costs. Its non-spillable AGM construction allows safe installation in tight or hard-to-reach locations and provides excellent resistance to vibration and shock.

• Performs reliably in extreme temperatures from -40°F to 140°F (-40°C to 60°C)

• Designed to withstand repeated partial charge operation

• Compatible with existing AGM battery chargers and profiles

Sustainable & Safe Power Solution

Trojan AES batteries are engineered with sustainability and safety in mind:

• Classified as non-spillable

• Manufactured using 80% recycled materials

• 99% recyclable, supporting environmentally responsible energy storage

Compact High-Capacity Construction

Despite its high capacity, the L16-AES maintains a compact footprint for easy integration:

• Dimensions: 11.66 × 6.94 × 16.41 in (296 × 176 × 417 mm)

• Weight: 114 lbs (55 kg)

• BCI Group Size: 903

Warranty & Reliability

The L16-AES 6V AGM Battery is backed by a 3-year Trojan warranty, ensuring long-term confidence and performance in demanding applications.

Key Benefits at a Glance

• 6V Trojan AES AGM deep-cycle battery

• Up to 3x longer cycle life than standard AGM

• High capacity for renewable energy, industrial, marine, and RV use

• Maintenance-free, non-spillable design

• Performs in extreme temperatures

• Rugged, vibration-resistant construction

• Environmentally responsible materials

• Compatible with existing AGM chargers

• Backed by a 3-year warranty
