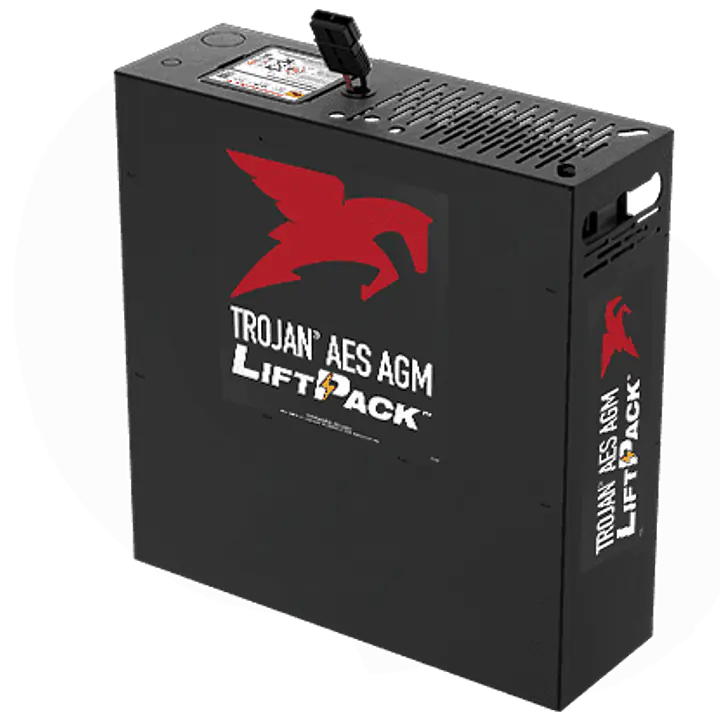

AES AGM LiftPack™ Battery Pack SYS00596 – All-in-One Power Solution for Class 3 Pallet Jacks

The AES AGM LiftPack™ Battery Pack (SYS00596) from Trojan is a premium, all-in-one power and charger solution designed specifically for Class 3 pallet jacks and related material handling equipment. Engineered for maximum reliability, maintenance-free operation, and long life, the LiftPack combines four high-performance Trojan T105-AES AGM 6V batteries with a 25 Amp onboard charger and a Universal Anderson Connector for plug-and-play convenience.

Exceptional Trojan AES AGM Battery Performance

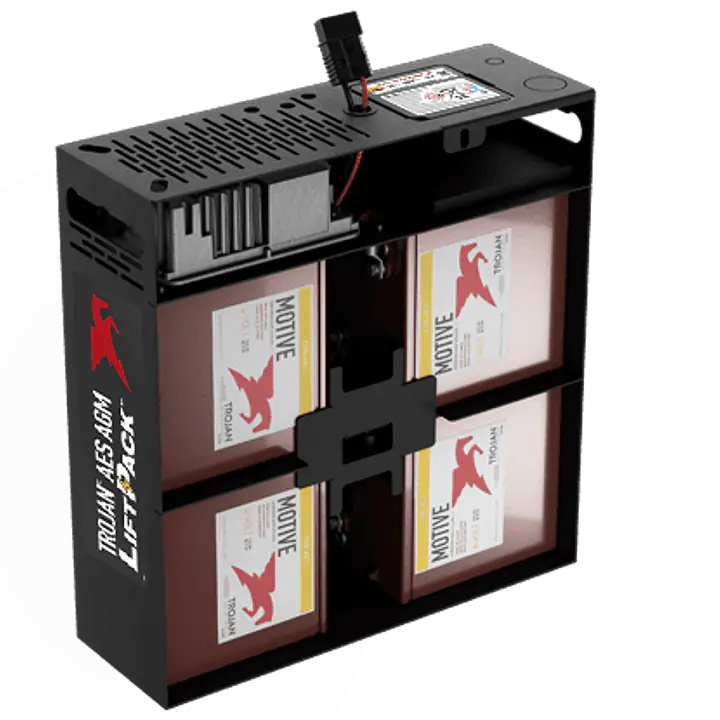

Each LiftPack includes four 6V Trojan AES AGM batteries, providing up to 3x longer cycle life than traditional AGM batteries, validated at 1,200 cycles at 100% DoD. These deep-cycle batteries are designed to withstand extreme temperatures and repeated partial state of charge (PSoC) operations, making them ideal for busy warehouses, cold storage, and high-intensity operations.

• Maintenance-free operation—no watering or servicing required

• Performs in temperatures from -40°F to 140°F (-40°C to 60°C)

• Non-spillable and 99% recyclable for safe, eco-friendly use

• Opportunity charging during short breaks without damaging batteries

• Long lifetime of 5 years under normal operating conditions

Integrated LiftPack Features for Ease of Use

The LiftPack is designed to simplify battery management and installation while delivering consistent performance:

• Premium 25 Amp onboard charger for accurate and efficient charging

• Easy installation and removal with cutout lifting points

• Universal SB175 black connector compatible with any forklift or pallet jack

• Rugged, durable construction ensures years of reliable power

• Industry-leading 3-year warranty covers the entire pack

Compact and Durable Design

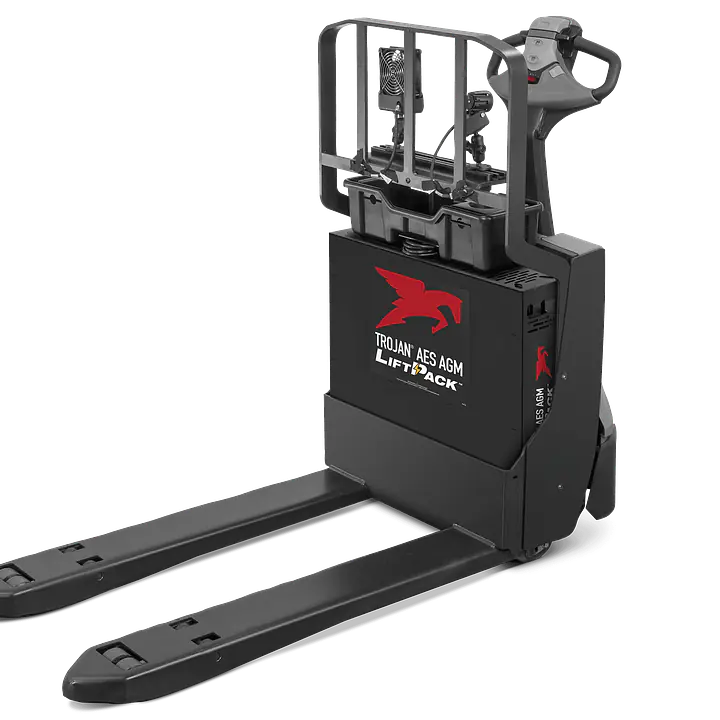

Despite its high-capacity power, the LiftPack is engineered to fit neatly and securely on Class 3 pallet jacks:

• Dimensions: 27.3 × 7.5 × 26.2 in (693 × 191 × 664 mm)

• Weight: 365 lbs (166 kg)

Key Benefits at a Glance

• All-in-one Trojan AES AGM battery and charger pack for Class 3 pallet jacks

• Includes four 6V Trojan AES AGM batteries with 3x longer cycle life

• Maintenance-free, non-spillable, and eco-friendly

• Opportunity charging supported for increased productivity

• Premium 25 Amp onboard charger for safe, efficient charging

• Rugged, durable design with easy installation and universal connectivity

• Operates in extreme temperature conditions

• 3-year warranty for complete peace of mind
