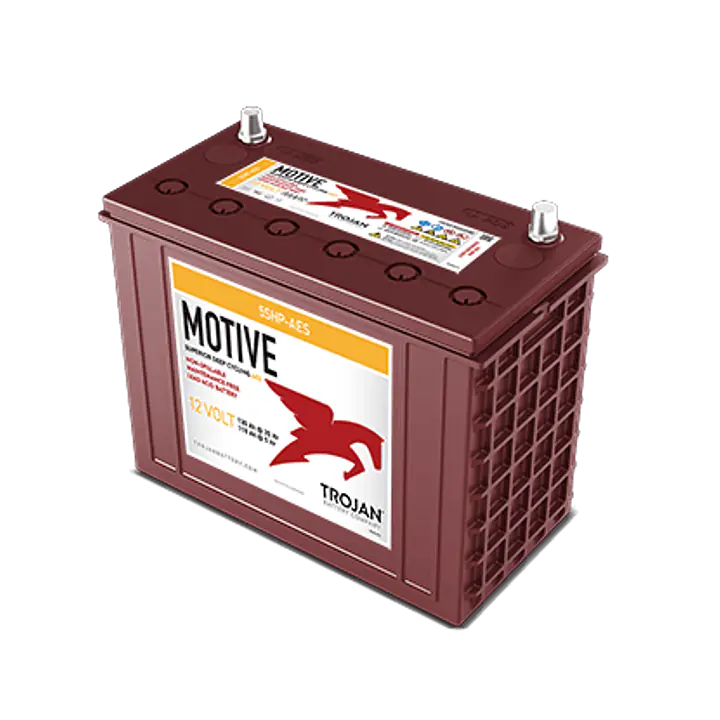

The Trojan 5SHP-AES 12V AGM Battery (DIN Size) is a high-capacity, heavy-duty AGM deep-cycle battery engineered for industrial, commercial, and high-energy applications that demand maximum runtime, fast recharge capability, and long service life. Featuring Trojan AES advanced AGM technology, the 5SHP-AES delivers superior power throughput and exceptional durability, even in the most demanding environments.

Designed to perform reliably under extreme deep-cycling conditions and partial state of charge (PSoC) operation, this maintenance-free VRLA AGM battery maintains high capacity and rapid recharge performance. Its rugged, vibration-resistant construction makes it ideal for material handling equipment, industrial vehicles, backup power systems, and high-load applications.

Key Features & Benefits:

• High Energy Output: Delivers 1.62 kWh of dependable deep-cycle power

• Extended Runtime: 260 minutes @ 25 amps for long operating cycles

• Fast Charging Performance: Superior power throughput enables faster recharge times

• PSoC Tolerant: Designed to withstand repeated partial state of charge operation

• Extreme Temperature Capability: Operates from -40°F to 140°F (-40°C to 60°C)

• Maintenance-Free Design: No watering or routine service required

• Rugged Construction: Engineered to absorb vibration and shock

• Safe & Sustainable: Manufactured with 80% recycled materials and 99% recyclable

• DIN Size Form Factor: Ideal for European and industrial equipment applications

• Warranty Protection: Backed by a 3-year manufacturer warranty

Technical Specifications:

• Amp-Hour Capacity:

  • 5-Hr Rate: 110 Ah

  • 10-Hr Rate: 124 Ah

  • 20-Hr Rate: 130 Ah

  • 100-Hr Rate: 135 Ah

• Dimensions: 13.43” L × 6.69” W × 10.35” H (341 × 170 × 263 mm)

• Weight: 96.1 lbs (43.6 kg)
