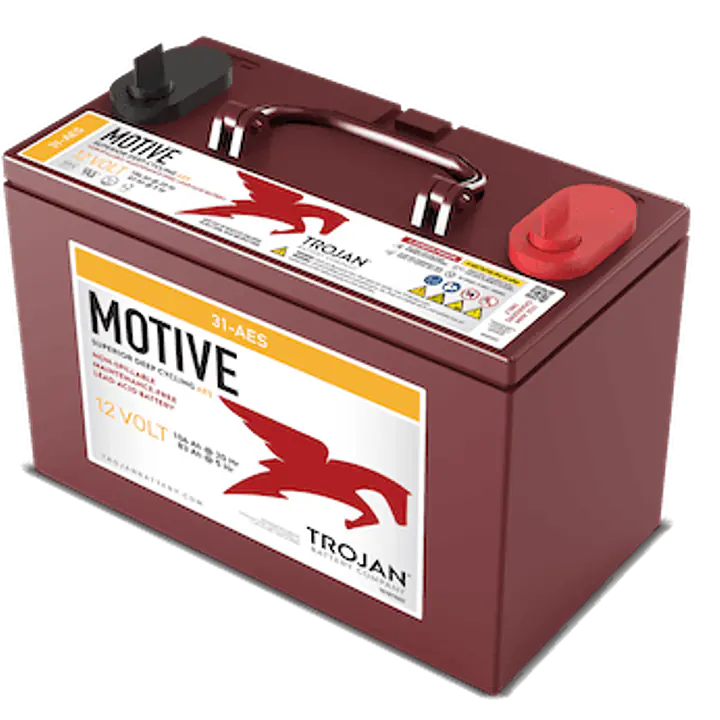

The Trojan 31-AES 12V AGM Battery is a high-capacity, deep-cycle AGM battery engineered for applications that demand maximum runtime, durability, and long service life. Built on Trojan AES advanced AGM technology, the 31-AES delivers up to 3x the cycle life of standard AGM batteries, making it ideal for commercial, industrial, and recreational power systems.

Designed to perform under extreme deep-cycling conditions (up to 100% depth of discharge), the Trojan 31-AES maintains high energy output even in partial state of charge (PSoC) operation and in harsh temperature environments. Its maintenance-free, non-spillable VRLA design allows for safe horizontal mounting, providing installation flexibility in tight or challenging spaces.

Key Features & Benefits:

• Extended Cycle Life: Up to 1,200 cycles at 100% DoD, delivering 3x longer life than conventional AGM batteries

• High Energy Output: Provides 1.38 kWh of reliable, sustained power

• Deep-Cycle Performance: Engineered for extreme deep cycling without capacity loss

• Wide Temperature Operation: Reliable performance from -40°F to 140°F (-40°C to 60°C)

• PSoC Tolerant: Designed to withstand repeated partial charging conditions

• Maintenance-Free AGM: No watering or routine service required

• Safe & Sustainable: Non-spillable, 80% recycled materials, and 99% recyclable

• Rugged Construction: Shock- and vibration-resistant for demanding environments

• Charging Compatibility: Works with existing AGM chargers and profiles

• Warranty Protection: Backed by a 3-year manufacturer warranty

Technical Specifications:

• Capacity @25 Amps: 180 minutes

• Amp-Hour Capacity:

  • 5-Hr Rate: 83 Ah

  • 20-Hr Rate: 104 Ah

• Dimensions: 12.80” L x 6.81” W x 9.43” H (325 x 173 x 240 mm)

• Weight: 69 lbs (31 kg)
