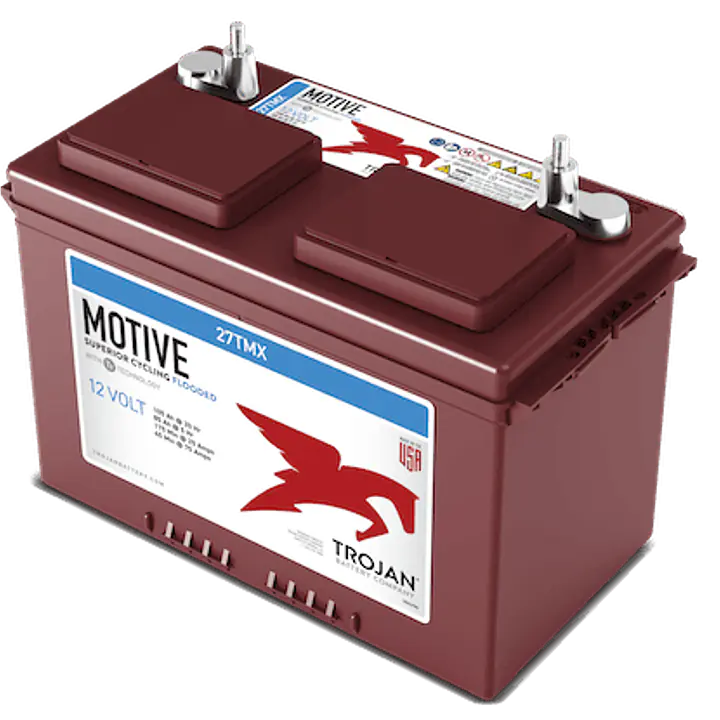

The 27TMX 12V Flooded Lead Acid Battery is a flagship deep-cycle battery from Trojan’s Signature Line, engineered for maximum energy output, long service life, and reliable performance. Featuring Alpha Plus® paste with T2 Technology, this battery provides sustained performance, extended lifespan, and increased total energy, making it ideal for golf carts, industrial equipment, renewable energy systems, and backup power applications.

With a rugged polypropylene case and the Maxguard T2 advanced separator, the 27TMX is heat and corrosion-resistant, delivering long-lasting performance while reducing operating costs. Its low self-discharge rate and multiple terminal options make it versatile, reliable, and easy to install, ensuring dependable power in a variety of applications.

Key Features & Benefits:

• Extended Runtime:

  • 175 minutes @ 25 amps

  • 45 minutes @ 75 amps

• Versatile Amp-Hour Capacity:

  • 5-Hr Rate: 85 Ah

  • 10-Hr Rate: 97 Ah

  • 20-Hr Rate: 105 Ah

  • 100-Hr Rate: 117 Ah

• Energy Output: 1.40 kWh

• Signature Line Performance: Alpha Plus® paste with T2 Technology ensures maximum sustained energy and long service life

• Advanced Separator: Maxguard T2 provides longer battery life and lower operating costs

• Rugged Construction: Heat and corrosion-resistant polypropylene case

• Terminal Flexibility: 4 different terminal types for versatile connections

• Low Self-Discharge: Only 5–15% per month

• Sustainable Design: 99% recyclable

• Operating Temperature: Performs reliably from -4°F to 122°F (-20°C to +50°C)

Technical Specifications:

• Dimensions: 12.84” L × 6.60” W × 9.74” H (326 × 168 × 247 mm)

• Weight: 55 lbs (25 kg)
