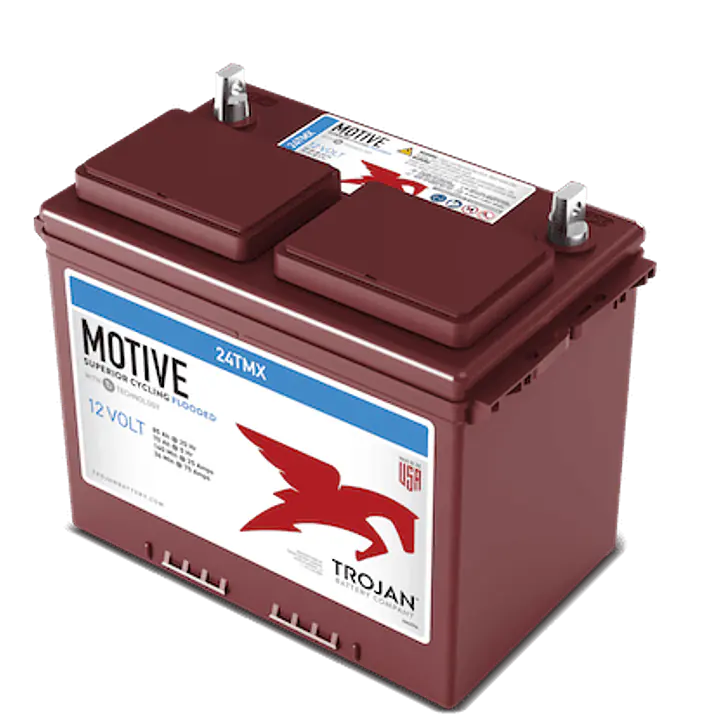

The 24TMX 12V Flooded Lead Acid Battery is a flagship deep-cycle battery from Trojan’s Signature Line, engineered for maximum energy output, long life, and reliable performance. Featuring Alpha Plus® paste with T2 Technology, this battery delivers sustained performance, extended lifespan, and increased total energy, making it ideal for golf carts, industrial equipment, renewable energy systems, and backup power applications.

Equipped with the Maxguard T2 advanced separator and a rugged polypropylene case, the 24TMX is heat and corrosion resistant and built to deliver long-lasting performance while reducing operating costs. With multiple terminal options and low self-discharge, this battery is versatile, reliable, and maintenance-friendly.

Key Features & Benefits:

• Extended Runtime:

  • 140 minutes @ 25 amps

  • 36 minutes @ 75 amps

• Versatile Amp-Hour Capacity:

  • 5-Hr Rate: 70 Ah

  • 10-Hr Rate: 78 Ah

  • 20-Hr Rate: 85 Ah

  • 100-Hr Rate: 94 Ah

• Energy Output: 1.13 kWh

• Signature Line Performance: Alpha Plus® paste with T2 Technology ensures maximum sustained energy and long service life

• Advanced Separator: Maxguard T2 provides longer battery life and lower operating costs

• Rugged Construction: Heat and corrosion-resistant polypropylene case

• Terminal Flexibility: 4 different terminal types for versatile connections

• Low Self-Discharge: Only 5–15% per month

• Sustainable Design: 99% recyclable

• Operating Temperature: Performs reliably from -4°F to 122°F (-20°C to +50°C)

Technical Specifications:

• Dimensions: 10.92” L × 6.62” W × 9.25” H (277 × 168 × 235 mm)

• Weight: 47 lbs (21 kg)
